Coilyx 062 (0.062" / 1/16")

Precision Pin Installation System, Dedicated Arbor Press Tooling for Solid, Slotted & Coiled Pins

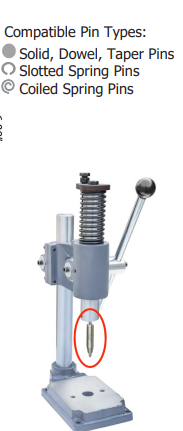

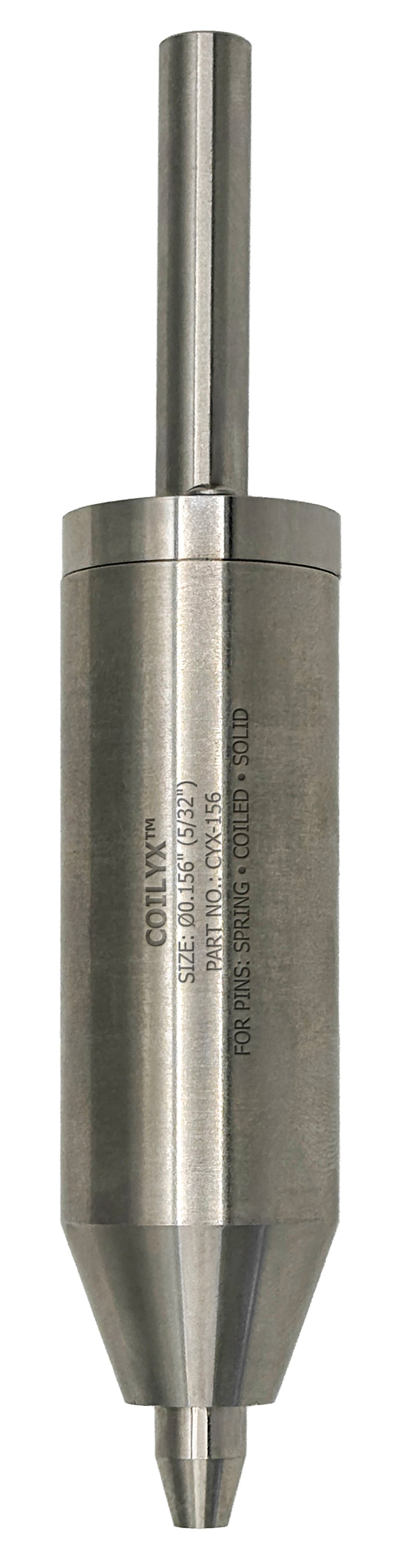

Precision Pin Alignment and Depth Control for Production Assembly. COILYX™ is a dedicated-size pin installation chuck designed for controlled insertion of solid pins, slotted spring pins, coiled spring pins, and similar cylindrical fasteners using arbor presses, manual presses, pneumatic presses, and other bench-mounted assembly equipment.
The tool is engineered to improve alignment, repeatability, and process consistency compared to traditional hammer-driven pin installation methods.

Coilyx - Features:

Process Repeatability

•  Dedicated-size tooling eliminates setup variation

•  Consistent pin presentation to the workpiece

•  Supports standardized assembly procedures

•  Reduces operator-to-operator variability

Precision Alignment

•  Maintains proper pin alignment during installation

•  Reduces pin tilt and misalignment

•  Improves assembly quality and consistency Controlled Force Application

•  For use with arbor press, bench press, and drill press

•  Eliminates hammer impact variability

•  Provides smooth, repeatable installation

Reduced Pin Damage

•  Minimizes bent, mushroomed, and damaged pins

•  Reduces scrap and rework

•  Protects assembled components from installation damage Production-Focused

Design

•  Dedicated tooling for a specific pin diameter

•  No adjustments required

•  Ideal for repeatable manufacturing processes Professional Grade Construction

•  Industrial-grade SS304 materials and manufacturing

•  Designed for daily production use

•  Long service life in manufacturing environments

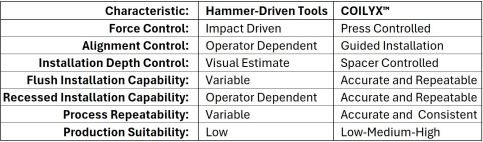

Why COILYX™?

• Process Repeatability: Standardized and repeatable assembly

• Precision Alignment: Improves assembly quality and consistency

• Controlled Force Application: Arbor press, bench press, drill press

• Reduced Damage: Protects components from installation damage

• Production-Focused Design: Repeatable manufacturing processes

• Professional Grade Construction: Designed for daily production use and long service life

COILYX™ includes a modular depth control system utilizing four precision-machined 0.0625" (1/16") spacers.
This feature allows any operator to consistently install pins flush with the workpiece surface or recessed below the surface without measuring each assembly.
